X-Type Foldable
Container House
One-Pull Setup. High-Performance Shelter.
This model features a seamless fold-out design with concave-convex splicing, superior insulation, and rapid 3–5 minute deployment capability.
Product Advantages
42cm folding height for extreme transport efficiency
Seamless, glue-free, windproof & rainproof seal
Rockwool Class-A fire-rated walls
10-second structural forming
Withstands over 1000 fold cycles
Applications
- Disaster-relief accommodation
- Emergency command posts
- Temporary clinics
- Field offices

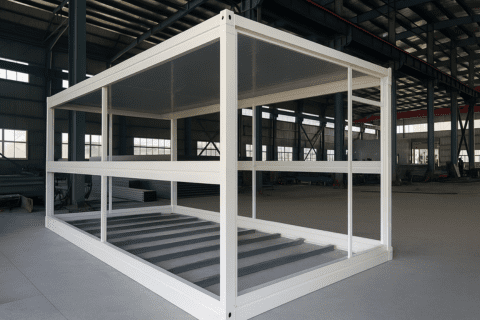

Seamless Weatherproof Folding System
The X-Type Foldable Container House uses an advanced concave–convex splicing system that forms a tight, glue-free seal—delivering superior protection against wind, rain, and long-term environmental exposure.
- Seamless concave–convex lock for airtight sealing
- Windproof and rainproof without adhesives
- Rockwool sandwich panels for Class A fire protection
- External steel plates for added weather durability

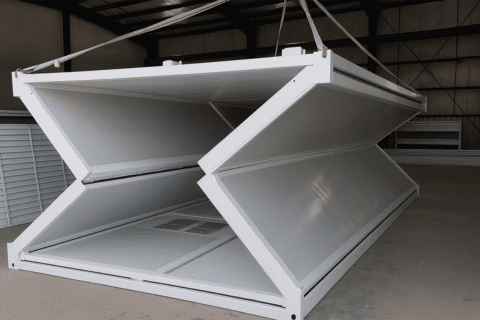

High-Efficiency Deployment for Critical Operations
Purpose-built for urgent field missions and high-demand environments, the X-Type model deploys in minutes, allowing rapid setup for emergency bases, command posts, and temporary operational facilities.
- 3–5 minute full installation
- Only 42 cm thickness when folded for low-cost transport
- Withstands more than 1,000 folding cycles
- Strong Q235B galvanized steel structure for long-term reliability
Technical Specifications
| Specification | Details |
|---|---|
| Standard Size | 5800×2500×2430 mm |
| Fire Rating | A-Level |
| Wind Resistance | Level 11 |
| Anti-Seismic | Level 8 |
| Roof Bearing | 50 kg/m² |
| Frame | Q235B galvanized steel |
| Flooring | PVC + Cement Board |
| Electrical | Lamps, sockets, AC socket, breaker system |

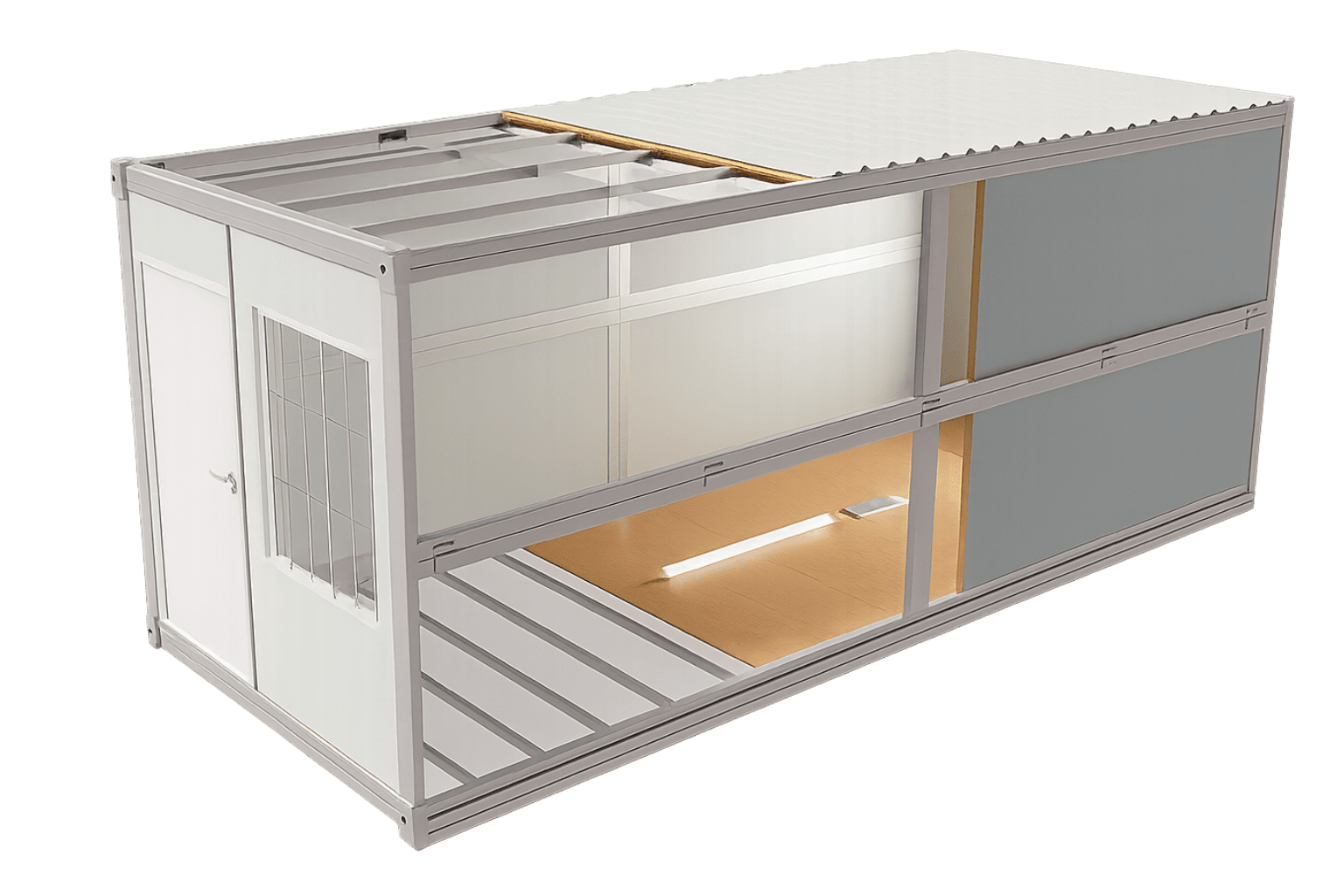

X-Type Foldable
Container Structure
1040 Type Color Steel Tile (0.45mm)
1 of 10Heat-Insulating Glass Wool (Capacity 60kg/m² Thickness 30mm)
2 of 10831-Type Ceiling Tile (0.28mm)
3 of 10Steel Security Door (970mm*1970mm)
4 of 10Aluminum Alloy Sliding Window (970m*1215mm with Screen)
5 of 10Magnesium Floor (Thickness 15mm)
6 of 10LED Energy-saving Lamp (1.2m Long)
7 of 10Circuit Protector
8 of 10Air-Conditioning Socket
9 of 10Thermal Insulation Rock Wool Color Steel Composite Sandwich Panel
10 of 10Structure Overview
- Roof insulation + external roof plate
- Corner posts with PVC drainage
- Waterproof membrane underlayment
- Foldable bottom & top sub-beams
- Fully engineered hinge-and-lock mechanism
Build Smart in Minutes
Deploy a durable, foldable unit engineered for rapid installation, high safety, and efficient transport.
